Specifications of Autoloader
Model |
Power (KW) |
Conveying Capacity (kg/hr) |
Conveying Height (m) |
Material Hopper Volume (L) |
Conveying Tube Calibre (mm) |
Dimension (LxWxH) |
Weight (kg) |
||||||||||
SAL-300C-Single Phase |
1 |
250 |
4.5 |
6 |
38 |
360x260x500 |
10 |
||||||||||
SAL-300 CE-Single Phase |
1 |
350 |
4.5 |
6 |
38 |
400x300x500 |
25 |
||||||||||
Model |
Power (KW) |
Conveying Capacity (kg/hr) |
Conveying Height (m) |
Material Hopper Volume (L) |
Conveying Tube Calibre (mm) |
ExternalDimension |
Weight (kg) |
||||||||||
Controller(LxWxH) |
Material Hopper (LxWxH) |
Controller |
Material Hopper |
||||||||||||||
AVL-150 |
0.9 |
150 |
4 |
6 |
38 |
360x260x600 |
360x260x430 |
45 |
6 |
||||||||
SAL-800 G1/AVL-300 |
1.1 |
350 |
4.5 |
6 |
38 |
450x380x600 |
360x260x430 |
45 |
6 |
||||||||
AVL-450 |
1.5 |
400 |
5 |
6 |
38 |
450x380x600 |
400x260x430 |
50 |
10 |
||||||||
AVL-3HP |
2.2 |
600 |
5 |
6 |
38 |
450x380x800 |
400x260x750 |
60 |
12 |
||||||||
AVL-5HP |
3.7 |
700 |
8 |
12 |
51 |
450x380x800 |
400x350x750 |
75 |
20 |
||||||||
AVL-7.5HP |
5 |
800 |
10 |
25 |
51 |
450x380x800 |
400x350x1000 |
90 |
25 |
||||||||
AVL-10HP |
7.5 |
1000 |
12 |
25 |
51 |
450x380x800 |
400x350x1000 |
90 |
25 |
||||||||
AVL-2HP-F2 |
1.5 |
250x2 |
5 |
6LX2 |
38 |
450x380x800 |
400x260x430 |
55 |
8x2 |
||||||||
AVL-3HP-F2 |
2.2 |
400x2 |
7 |
6LX2 |
38 |
450x380x800 |
400x260x750 |
65 |
12x2 |
||||||||

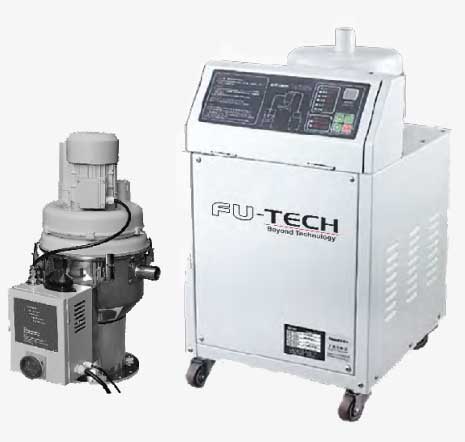

Features of Autoloader
- The main engine and the material hopper are designed separately. and thus, it is safe, easy and convenient to be operate.
- Equipped with an independent filter, which is very convenient to clean up dust.
- The equipped muffler reduces the noise of operation.
- Stainless steel material hopper is light in weight, durable and very convenient for Cleaning the device.
- The control box, being designed separately, is easy to be well maintained.
- Auto-buzzer will give alarm while lacking material. Auto-protective device protect motor against over loading.
- Two whole operation is controlled by micro trip computer.
Auto Loader injection molding machines manufacturer in India
Yes, Fu-Tech is also a leading manufacturer of auto loaders injection molding machines in India. They offer a wide range of auto loaders to suit different requirements, including:
- Horizontal auto loader machines: Those machines are perfect for small and medium sized businesses. they may be easy to function and preserve, and they're exceptionally low cost.
- Vertical auto loader machines: Those machines are extra expensive than horizontal machines, however they provide a number of benefits, together with faster cycle times, stepped forward accuracy, and more energy efficiency.
- Specialty auto loader machines: Fu-Tech also gives a number specialty vehicle loader machines for unique packages, including the manufacturing of automotive additives, scientific gadgets, and packaging substances.
Fu -Tech auto loader machines are made from high fine substances and components, and they may be built to final. they may be additionally sponsored by way of a comprehensive assurance.
in case you are looking for a reliable and low-priced auto loader injection molding machines manufacturer in India, Fu Tech is a remarkable choice. they've a proven track report of patron pleasure, and that they offer a huge range of machines to fit one of a kind requirements.
Here are some of the benefits of choosing Fu-Tech for your auto loader injection molding machine needs:
- Expertise: Fu-Tech has over 20 years of revel in in the design and manufacture of auto loader injection molding machines. they have got a deep understanding of the distinct sorts of hopper dryers available, and they assist you to pick the proper dryer on your unique desires
- Quality: Fu-Tech uses high best substances and components in their auto loader machines. they're built to closing, and they arrive with a comprehensive assurance.
- Service: Fu -Tech offers remarkable customer service. They have a team of skilled engineers who assist you to with set up, renovation, and troubleshooting.
In case you are searching out a reliable and low priced auto loaders injection molding machine manufacturer in India, Fu Tech is a super option. touch them today to examine extra approximately their products and services
Here are some of the auto loader injection molding machines offered by Fu-Tech:
- Forza 1500KN IU 748: This is a high performance auto loader machine with a clamping pressure of 1500KN. It is ideal for the production of massive and complex elements.
- Eurostar 1000KN IU 748: This is a flexible vehicle loader system with a clamping force of 1000KN. It is good for a wide range of packages, inclusive of the manufacturing of automobile components, scientific gadgets, and packaging materials.
- Vigor 500KN IU 748: that is an access stage auto loader machine with a clamping pressure of 500KN. It is ideal for small and medium sized corporations that want a reliable and less costly machine.
