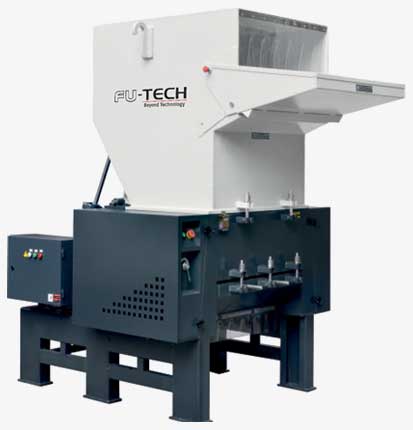

Specifications of High Speed Granulator
Model |
Chamber Calibre (mm) |
Crush Capacity (kg/H) |
Rotating Blader (pcs) |
Fixed Bladder (pcs) |
Motor (kw) |
External Dimensions (LxWxH) |
Weight (kg) |
SG-230F |
200x230 |
50-60 |
3x2 |
2x1 |
4 |
920x610x1050 |
250 |
SG-230F |
200x300 |
75-100 |
3x3 |
2x1 |
5.5 |
950x470x1190 |
400 |
SG-230F |
235x400 |
100-150 |
3x4 |
2x1 |
7.5 |
980x840x1300 |
500 |
SG-230F |
290x500 |
200-250 |
3x5 |
2x2 |
11 |
1100x1020x1530 |
950 |
SG-230F |
320x600 |
250-350 |
3x6 |
2x2 |
15 |
1200x1110x1690 |
1300 |
SG-230F |
540x810 |
400-500 |
3x4 |
2x2 |
22 |
2200x1500x2300 |
2100 |
SG-230F |
660x1000 |
600-800 |
3x |
2x3 |
30 |
2300x1750x2650 |
2500 |
SG-230F |
800x1200 |
800-1000 |
3x6 |
2x3 |
45 |
2700x2100x3100 |
3500 |
Features of High Speed Granulator
- Integral body sturdy and durable, keep excellent performance after using long time.
- Heavy-duty bearing & dust protection device the sound proof boar can prevent vibration & noise effectively.
- The over loading protector on the motor and inter lock protection device on the power source, double protection for the safety of human being and motor.
- Paddle-blades rotor adopting shear principle, made of high chromium steel.
- The gap between blades is adjustable. The blades can be dismounted repeatedly for the purpose of re-sharpening.
- Separable design, the bunker main body mesh frame is dismounted easily convenient for bunker cleaning.
- With vibration-resistant feel reduce the noise of vibration.
Advantages of Fu-Tech High-Speed Granulators
Excessive velocity granulators are specialised machines used in plastic injection molding methods to break down plastic waste, consisting of sprues, runners, and rejected elements, into smaller granules. those granules can be recycled and reused in the production technique, reducing material waste and minimizing environmental effect.
- Reduced Material Waste: High pace granulators notably reduce material waste generated for the duration of injection molding. by using breaking down waste into granules, manufacturers can recycle and reuse the cloth, minimizing waste disposal prices and environmental effect..
- Improved Material Handling: Managing large plastic waste pieces can be challenging. high-velocity granulators remodel waste into conceivable granules which might be simpler to handle and shipping, streamlining cloth coping with methods within the facility..
- Enhanced Production Efficiency: Efficient waste management contributes to average production performance. high speed granulators permit producers to recycle waste fabric quick, lowering the need for brand new raw materials and optimizing manufacturing approaches..
Choosing the Right High-Speed Granulator:
- Material Type and Volume: Choosing the precise high pace granulator depends on the sort and extent of waste material generated for your injection molding procedures. special granulators are designed to deal with particular substances and portions
- Granulator Capacity: Granulator ability is a key consideration. Fu-Tech provides facts on the potential in their high speed granulators, helping you pick a device that aligns along with your manufacturing desires.
- Safety Features and Maintenance: Safety capabilities are critical for operator properly-being. Fu-Tech's high pace granulators come with safety mechanisms to prevent accidents. moreover, the employer offers preservation recommendations to make sure smooth and secure operation..
Installation and Maintenance:
- Proper Setup and Placement: accurate set up is important for top-rated overall performance. Fu-Tech offers steerage on putting in excessive-pace granulators to make certain secure operation and efficient material processing.
- Routine Maintenance Guidelines: Everyday upkeep prolongs the lifespan of granulators. Fu-Tech offers upkeep suggestions to assist operators perform habitual duties such as cleaning, blade protection, and gadget assessments..
- Troubleshooting Assistance: In case of troubles, Fu-Tech gives troubleshooting sources and technical guide to assist operators pick out and cope with issues directly, minimizing downtime.
