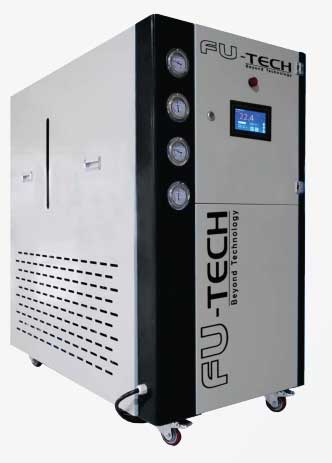

Specifications of Industrial Chiller
Specification Model |
Units |
2TR |
3TR |
5TR |
7.5TR |
10TR |
12.5 TR |
15TR |
17.5 TR |
20TR |
25TR |
30TR |
Water Temp. |
C° |
7°C -25°C |
||||||||||
Refrigerating Capacity |
KW |
7 |
10.5 |
17.5 |
26.3 |
35.1 |
44 |
52.7 |
61.5 |
70.3 |
87.9 |
105.5 |
|
Kcal/h |
6051 |
9078 |
15129 |
22695 |
30259 |
37825 |
45390 |
52954 |
60519 |
75650 |
90780 |
Power Supply |
v |
Three Phase 220V – 440V, 50 Hz |
||||||||||
Rated Power |
kw |
2.2 |
3.3 |
4.5 |
7.1 |
9 |
12.8 |
14.5 |
16.5 |
18 |
21 |
28 |
Compressor Horsepower |
HP |
2 |
3 |
5 |
7.5 |
10 |
12.5 |
15 |
17.5 |
20 |
25 |
30 |
Compressor Type |
|
Reciprocating & Scroll Compressor |
||||||||||
Pump Horsepower |
HP |
1 |
1 |
1.5 |
3 |
|
External Pump & Tank |
|||||
Cold water flow |
L/min |
40 |
60 |
120 |
160 |
|
||||||
Cold water Pressure |
Bar |
1 |
2 |
3 |
3.3 |
|
||||||
Dilation water tank |
Litre |
60 |
80 |
150 |
180 |
|
||||||
Ice water fitting Piece (out) |
inch |
1” |
|
2 |
2 |
|
||||||
Condenser |
Shell & Tube Type, Finned & Tube Type |
|||||||||||
Fan (in air cooled) |
|
16” |
18” |
24” |
16x2” |
22x2” |
22x2” |
24x2” |
|
|
|
|
Evaporator |
|
Coil in Tank |
Shell & Tube Type |
|||||||||
Cooling Medium |
R-22, R407C |
|||||||||||
Temperature control |
Micro Computer LED and Digital Temperature Controller |
|||||||||||
Dimensions(cm) |
L |
95 |
104 |
135 |
155 |
180 |
230 |
|||||
|
W |
68 |
76 |
85 |
90 |
100 |
100 |
|||||
|
H |
95 |
103 |
134 |
138 |
140 |
150 |
|||||
Weight |
kg |
|
|
|
|
|
|
|
|
|
|
|
Protection Device |
Compressor Overload Protector, High / Low Refrigerant Pressure Switch, Temperature Switch, Reserve Current Switch, Flow Control Switch |
|||||||||||
Features of Industrial Chiller
- Famous brand-new compressors, highly efficient shell condensers and evaporators-excellent cooling, quiet with low electric consumption.
- P.I.D. Microprocessor control-easy to operate, accurately maintains temperature range from30°C to 500°C.
- Special open type reservoir tank with stainless steel-easy to clean and maintain.
- Well designed and reasonable pipe lines ensure power supply and saves energy.
- Current-over load protector, high-and-low pressures witches, electronic time delayer, fault display system-safe and durable.
- Liquid Crystal display showing temperatures of outlet and inlet chill water-provides visualised and direct setting.
- Single, double or quadruple compressors combination available-economical and efficient.
- Industrial designed-elegant and ergonomic.
Advantages of Fu-Tech Industrial Chillers
Efficient temperature manage is a crucial detail in plastic injection molding procedures. To keep product first-rate and make certain regular manufacturing, commercial chillers play a important position in retaining the producing surroundings at the finest temperature. most of the main producers on this field, "Fu-Tech" stands proud as a reliable company of commercial chillers in India.
- Consistent Production Quality: Keeping constant temperature situations is important for regular product exceptional. Fu Tech industrial chillers make certain that the injection molding system stays inside the favored temperature variety, minimizing versions and defects within the very last merchandise.
- Reduced Downtime: Unplanned downtime can disrupt production schedules and growth expenses. Fu Tech commercial chillers are designed for reliability, reducing the probability of breakdowns and minimizing production interruptions.
- Environmental Friendliness: Fu-Tech electricity green business chillers no longer handiest benefit the lowest line but also make a contribution to environmental sustainability. by using ingesting much less power and generating fewer emissions, these chillers align with inexperienced production practices.
Choosing the Right Industrial Chiller:
- Cooling Capacity: deciding on the suitable commercial chiller relies upon on the cooling potential required to your specific utility. take into account factors such as the size of molds, production extent, and cooling time to pick out a chiller that meets your cooling needs.
- Energy Efficiency Ratings: Energy performance is a essential attention. Fu Tech offers statistics at the strength performance ratings in their commercial chillers, assisting you're making an knowledgeable selection that aligns together with your sustainability dreams.
- Compatibility with Injection Molding Equipment: Seamless integration with injection molding device is essential.Fu-Tech industrial chillers are designed to be properly proper with numerous injection molding setups, ensuring clean operation and simplest performance.
